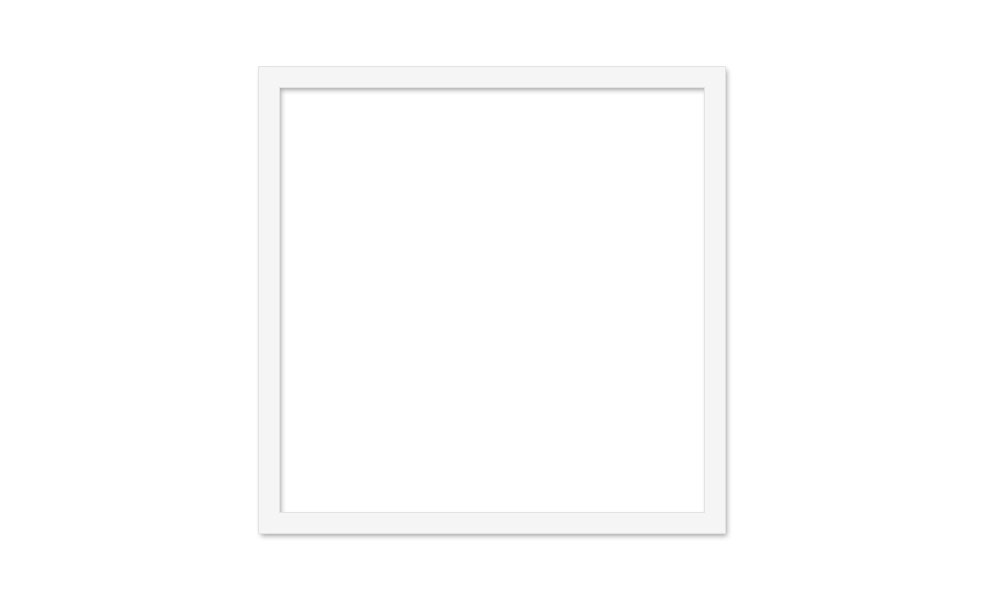

<p>LED FRAME LIGHT</p><b>J-F2F4</b>

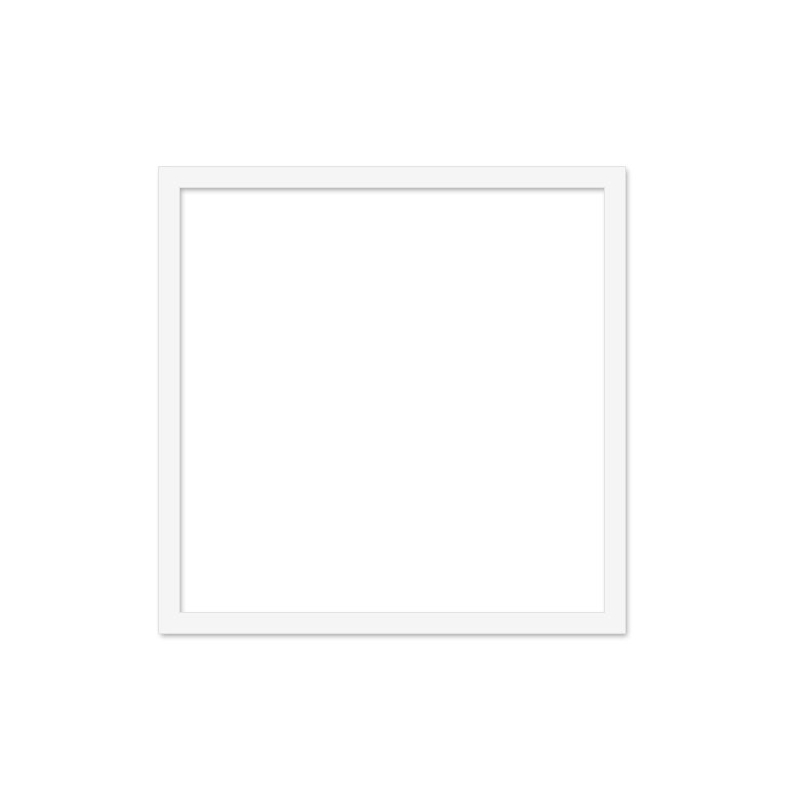

LED FRAME LIGHT

J-F2F4

<p>LED FRAME LIGHT</p><b>J-F2F4</b>
FEATURES AND SPECIFICATIONS
FRAME comes in 2x2, and 2x4 options, offering a sleek, modern look with top-notch functionality Wattage and CCT selectable reduce your stock SKU Cutting-edge optical tech, it matches the lighting specs of traditional LED panels.

Electrical
Input voltage:120-277V,
Power factor:>0.95,
Dimmable:0-10V dimming,
THD:<10%,
IP Rating:IP40,
CRI: >80 Beam,
angle:120°.

Applications
Offices, retail, schools, restaurants, healthcare, residential, and hospitality applications.

Installation
Fixture is suitable for recessed mounting with T-bar Suspended installation.

Listing
ETL & DLC 5.1.

Warranty
5-year limited warranty.

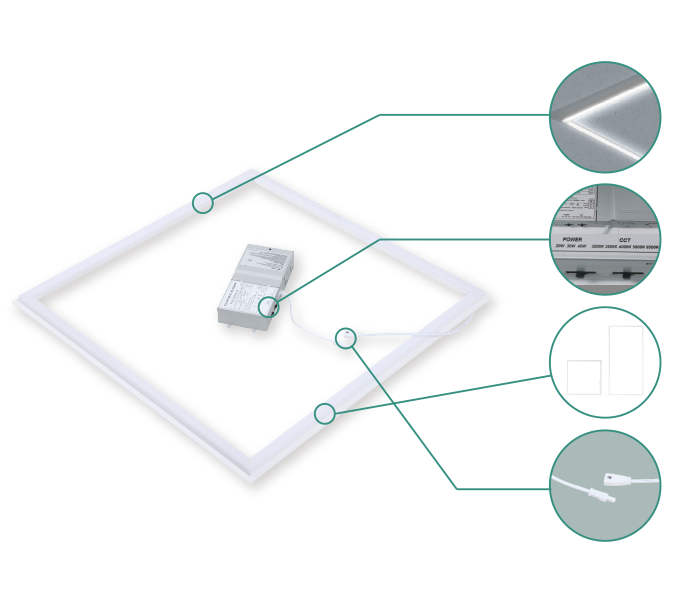

Product Features:

Cutting-edge optical tech, it match
the lighting specs of traditional LED
panel

Wattage and CCT selectable reduce
your stock SKU

Frame comes in 2x2, and 2x4
options, offering a sleek, modern
look with top-notch functionality

Very convenient and fast power
connection method

Product specification:

Model No. Watts Lumens CCT Input Voltage Dimension
JEN-F2-K40-3065 20/30/40W Max. 5000lm 3000K/3500K/4000K/5000K/6500K AC120-277V 23.75*23.75*0.6 in
JEN-F4-K60-3065 40/50/60W Max. 7500lm 3000K/3500K/4000K/5000K/6500K AC120-277V 47.76*23.75*0.6 in

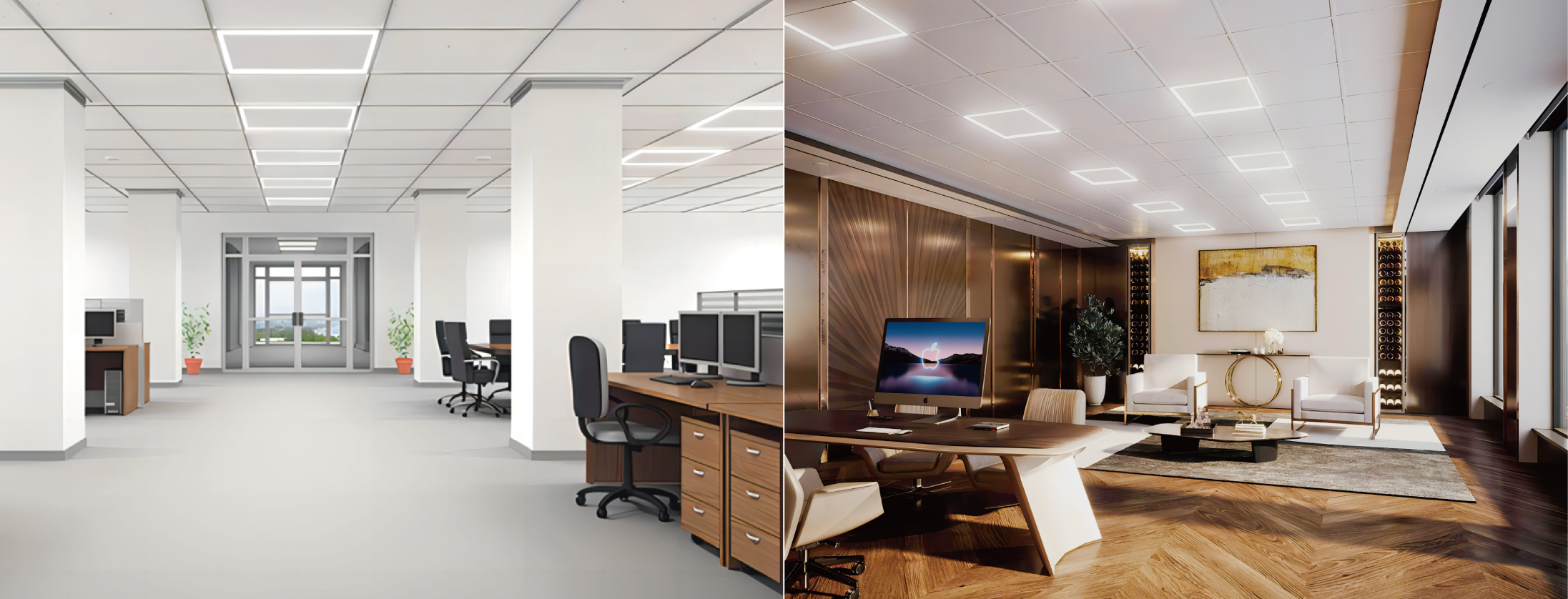

Application scenarios:
