LED Troffer - LED Troffer - JEE Lighting Corp

Construction

Precision die-formed steel housing in a white finish

Recessed design fits most standard T-bar grid ceilings

5 Wattage and 5 CCT switches located on driver junction box

Large driver box for easy installation and wiring

Electrical

Input Voltage: 100-277Vac 50/60Hz

0-10V dimmable, Triac dimming

THD≤10%, PF≥0.95

Applications

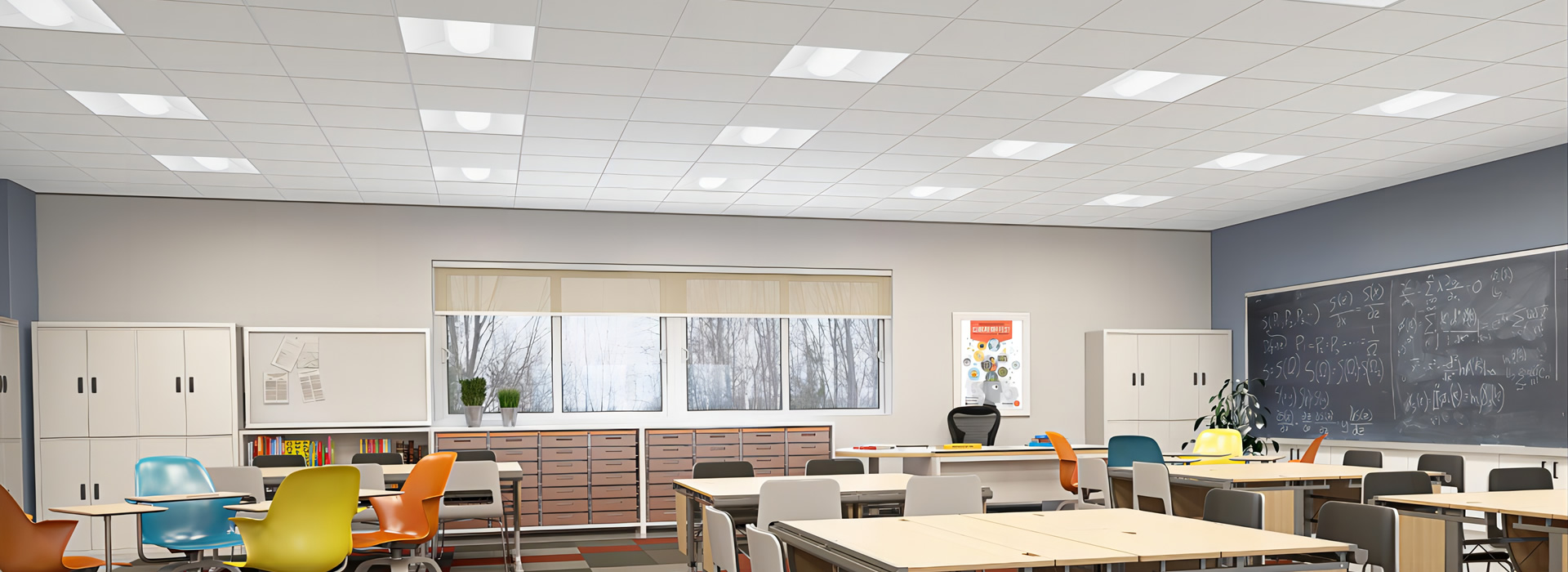

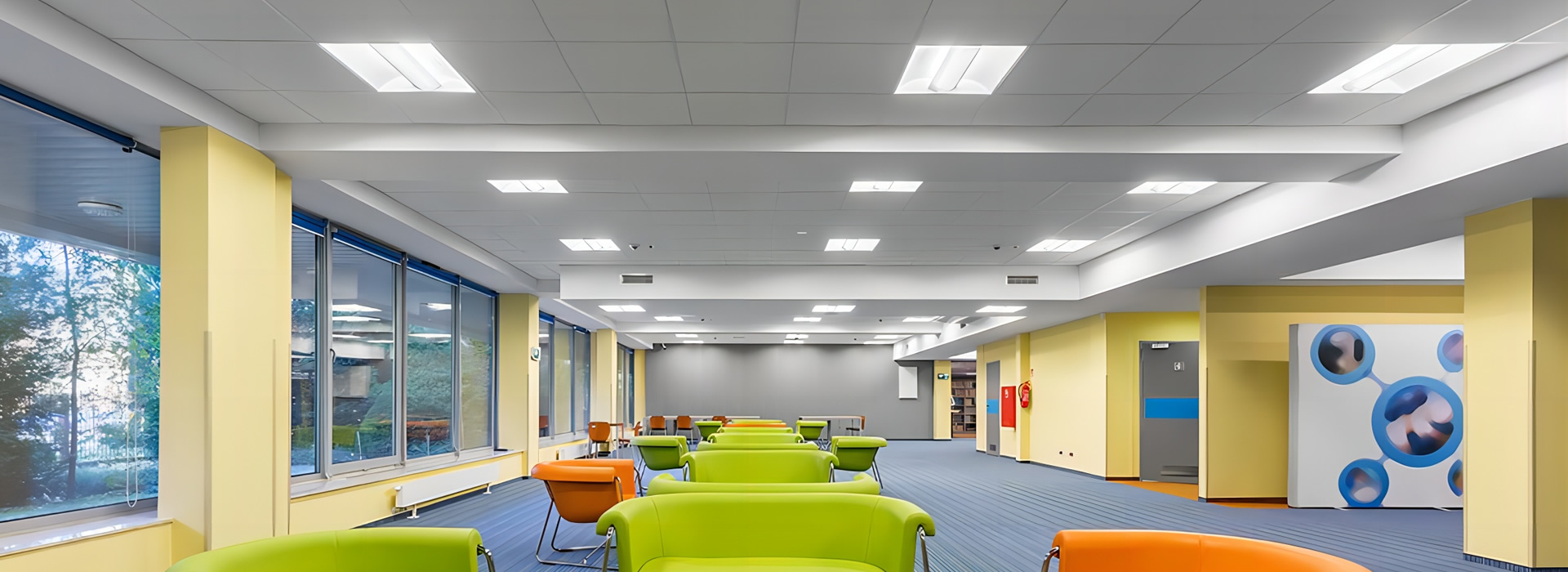

Offices, retail, schools, restaurants, healthcare, residential, and hospitality applications.

Installation

Unit simply lifts through grid ceiling and rests on T-bars

Easy installation in new construction or retrofit

Standard recessed mounting in most 2’ x 2’ or 2’ x 4’ grid ceilings

Easily set wattage and CCT during installation using the adjustment switches located on the driver box

Use in ambient temperatures ranging from -20° C (-4° F) to 35° C (95° F)

Listing

ETL listed, suitable for damp location.

DesignLights Consortium ®(DLC)Premium.

Warranty

5-year limited warranty
